Sawing line IDC000159
85 000 € excl. VAT
85 000 € excl. VAT
Product code: IDC000159

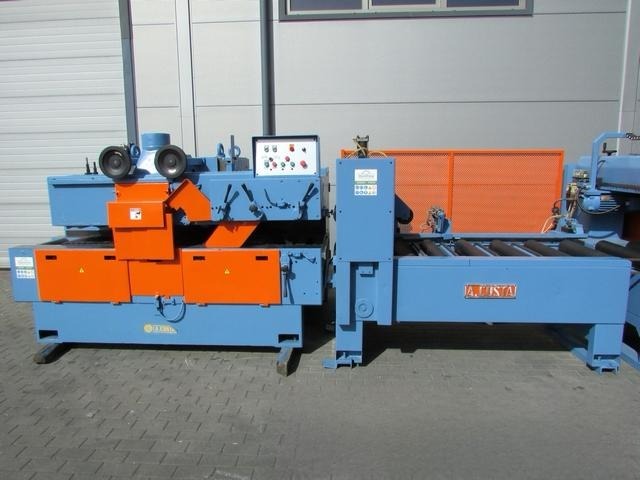

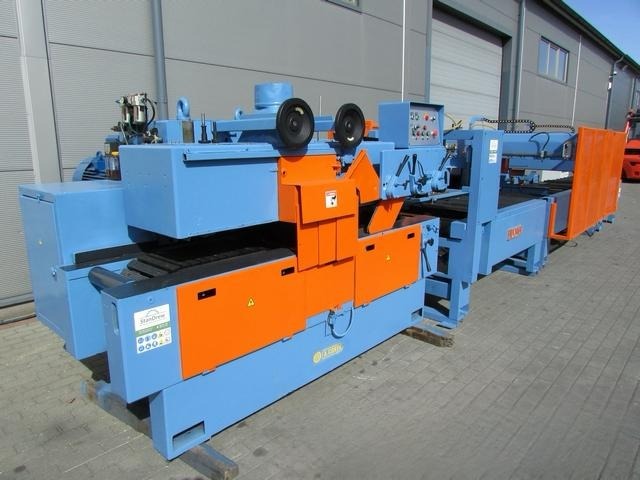

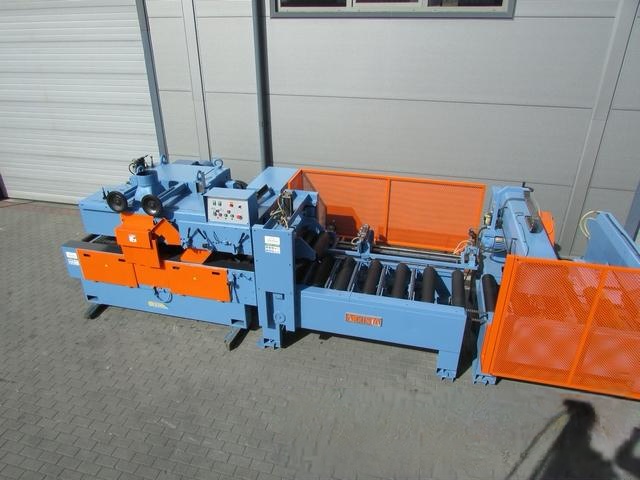

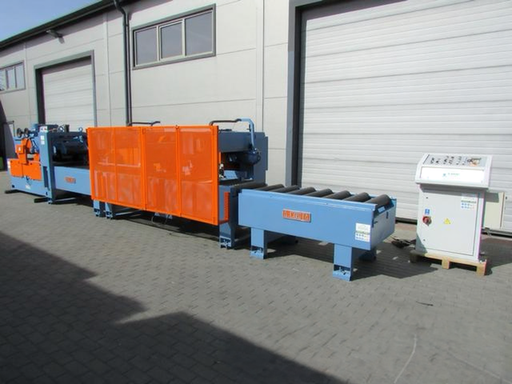

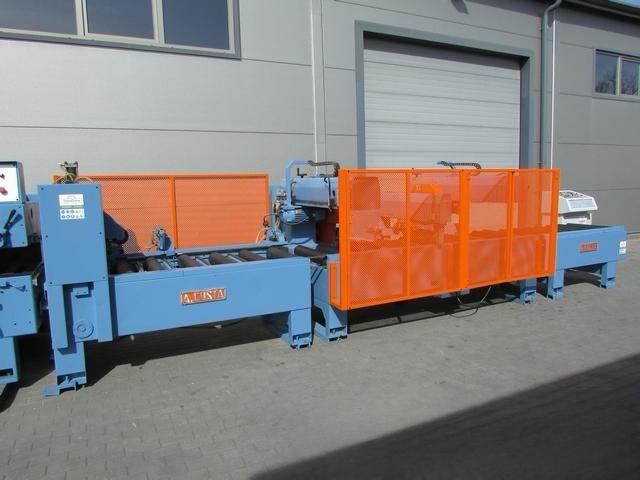

Double shaft multi-saw with a feeder A. COSTA LEOPARD D
- Engines 55 and 55 kW
- Feeder motor 7.5 kW
- Height adjustment motor 1.1 kW
- Cutting height 200 mm
- Cutting width 350 mm
- Saw blade diameter max. 300 mm
- Spindle diameter 2 x 60 mm
- Sleeve diameter 2 x 70 mm
- Rail width 350 mm
- Total power 119 kW
- Electric feed adjustment
- Automatic central lubrication
- Minimum element length 600 mm
- Electric height adjustment
- Spindle height adjustment

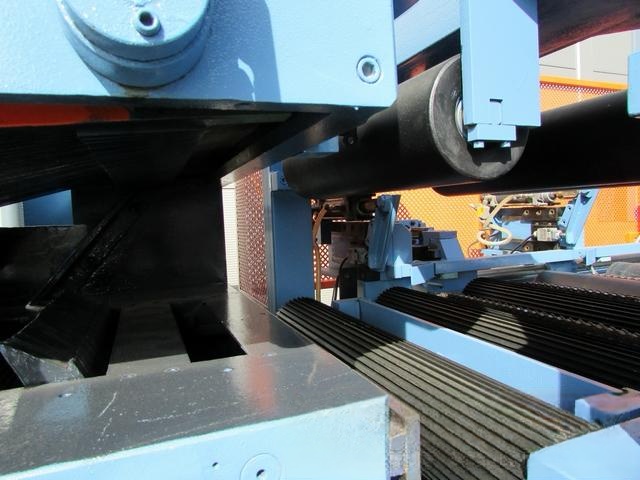

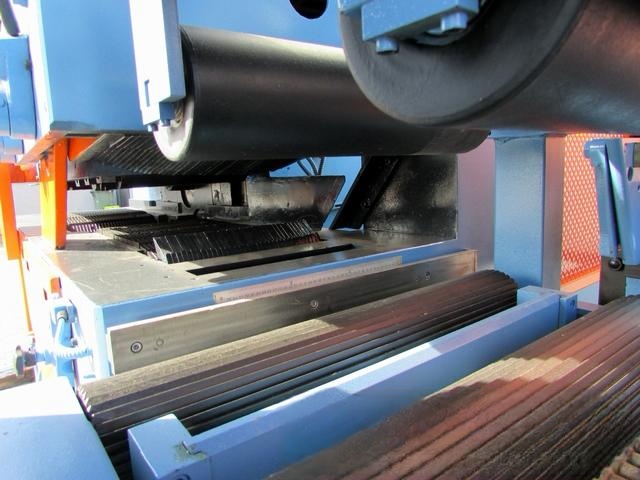

- Six upper pressure rollers
- Pneumatic clamps
- Five anti-dumping triggers
- Ruler
- End diameter 220 mm
- Spindle speed 4500 rpm
- Machine dimensions (length / width / height) 275 / 235 /
- 210 cm
- Weight ~ 7000 kg

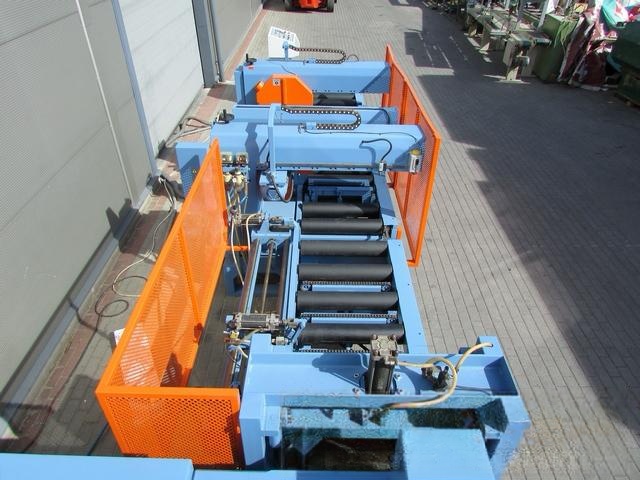

- Feeder:
- Max. cutting length 1850 mm
- Min. cutting length 800 mm
- Max. material length 2500 mm
- Min. material length 600 mm
- Max. material width 700 mm
- Max. material height 200 mm
- Roll width 700 mm
- Roll diameter 130 mm
- Number of rolls 26
- 3 smooth pressure rollers
- 4 toothed pulling rollers
- Feed adjustable on inverter 0-70 m/min.
- Central lubrication of saw guides
- Saw motor power 2 x 9.2 kW
- Feed motor power 1.5 kW
- Disc spreading motor power 3 kW
- Chain motor power 1.1 kW
- Dimensions (length / width / height) 7050 / 2100 / 1850 mm
