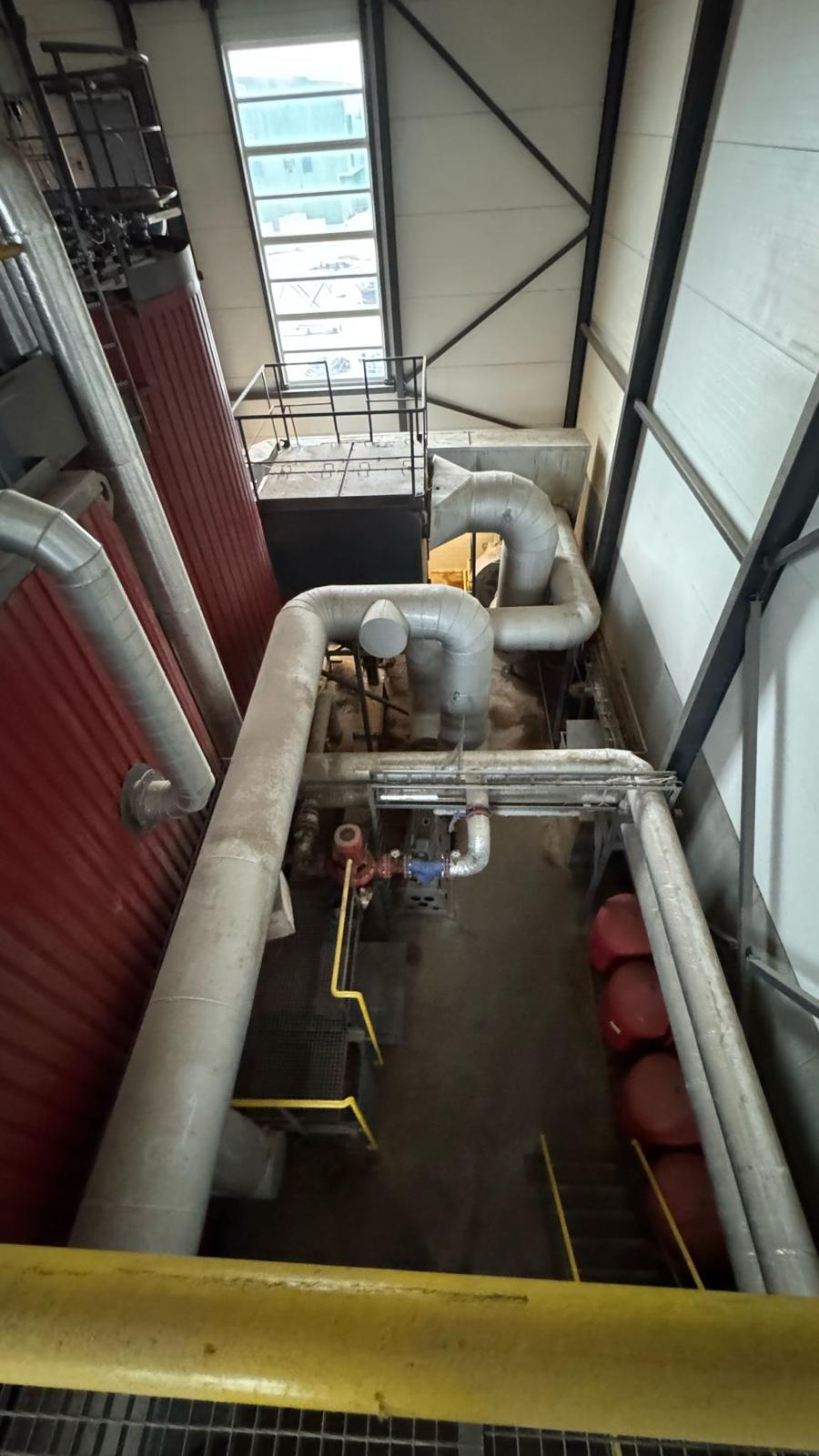

Biomass boiler plant IDC000145

Biomass boiler plant

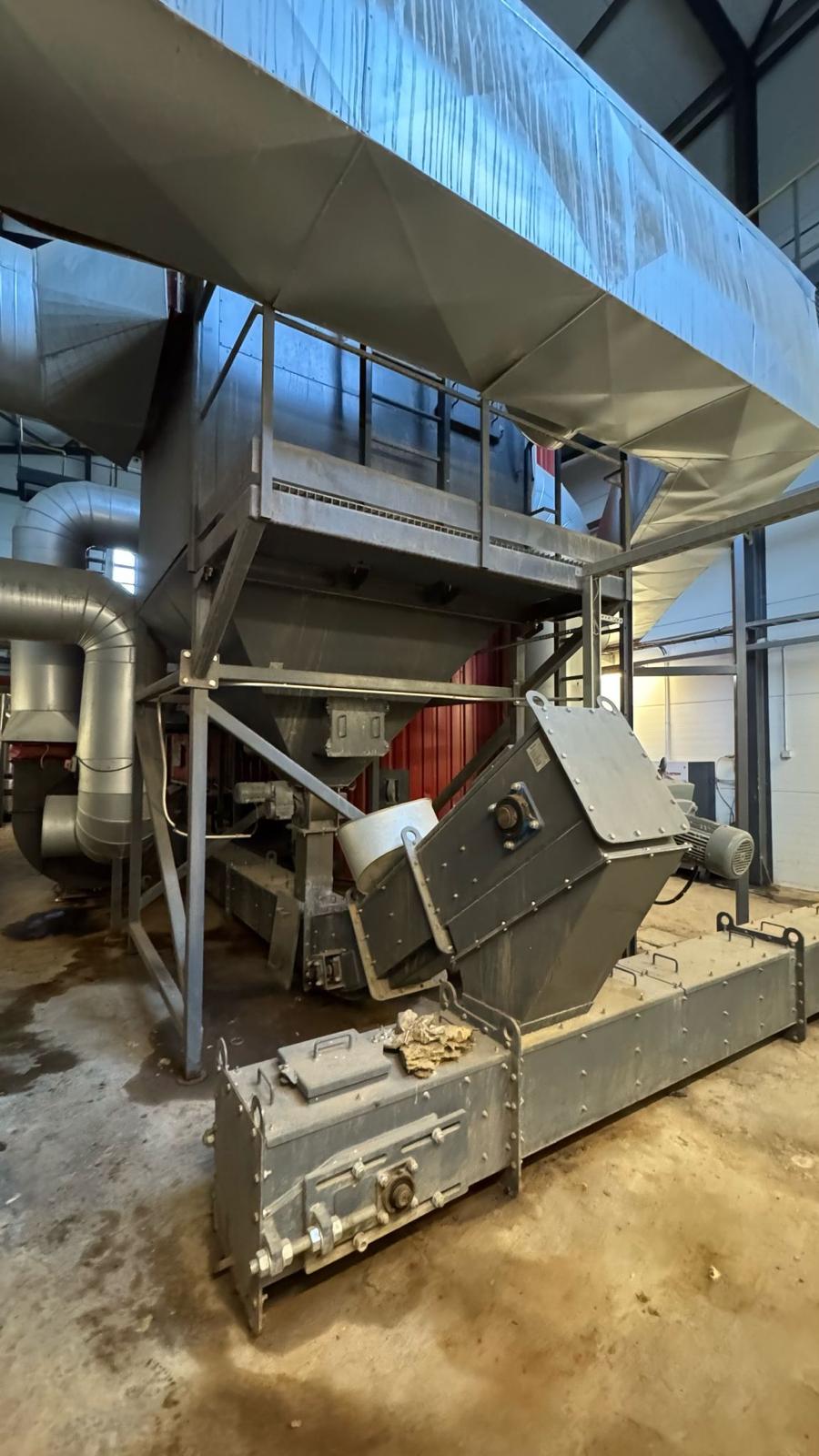

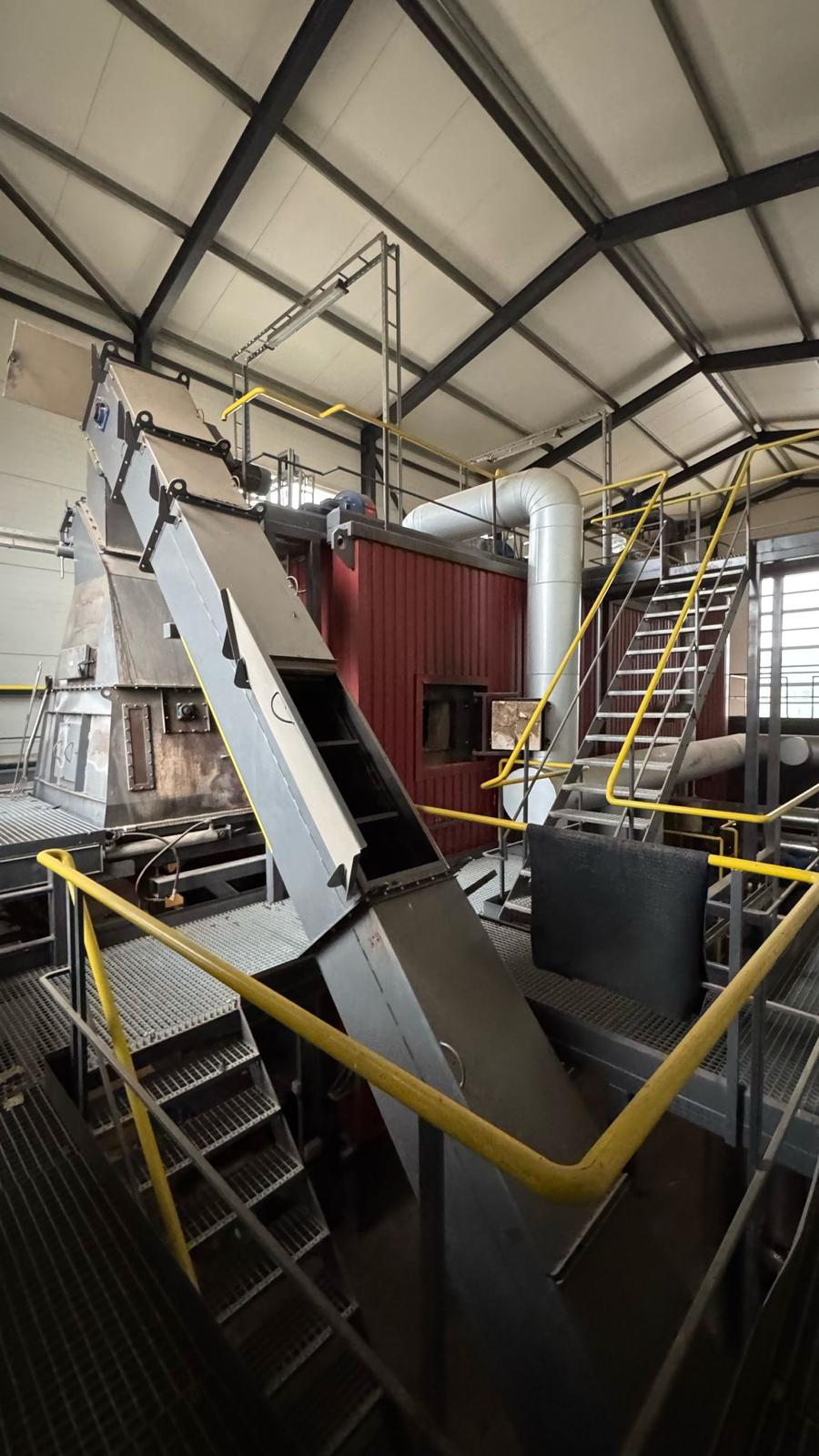

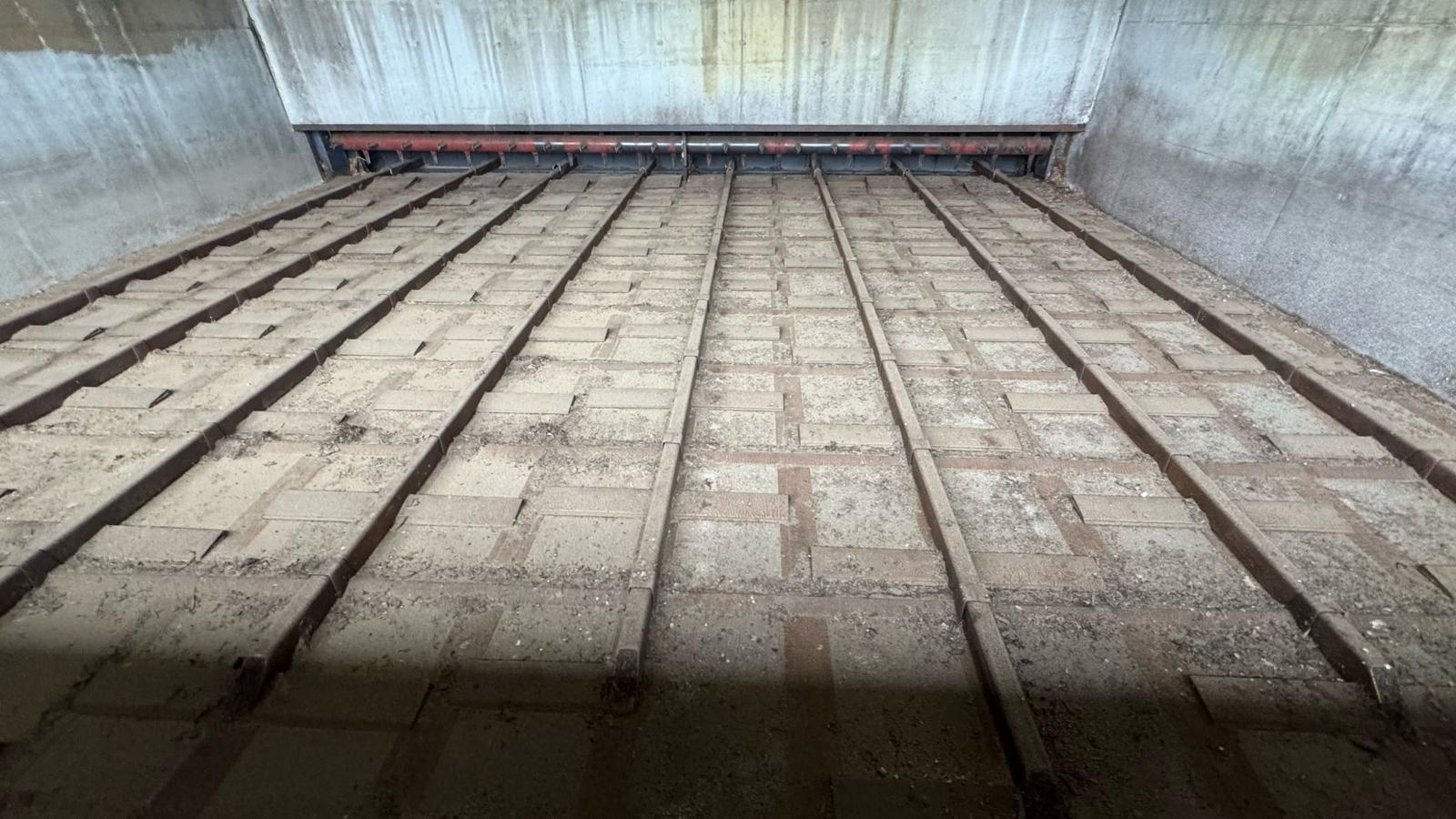

• Fuel delivery system

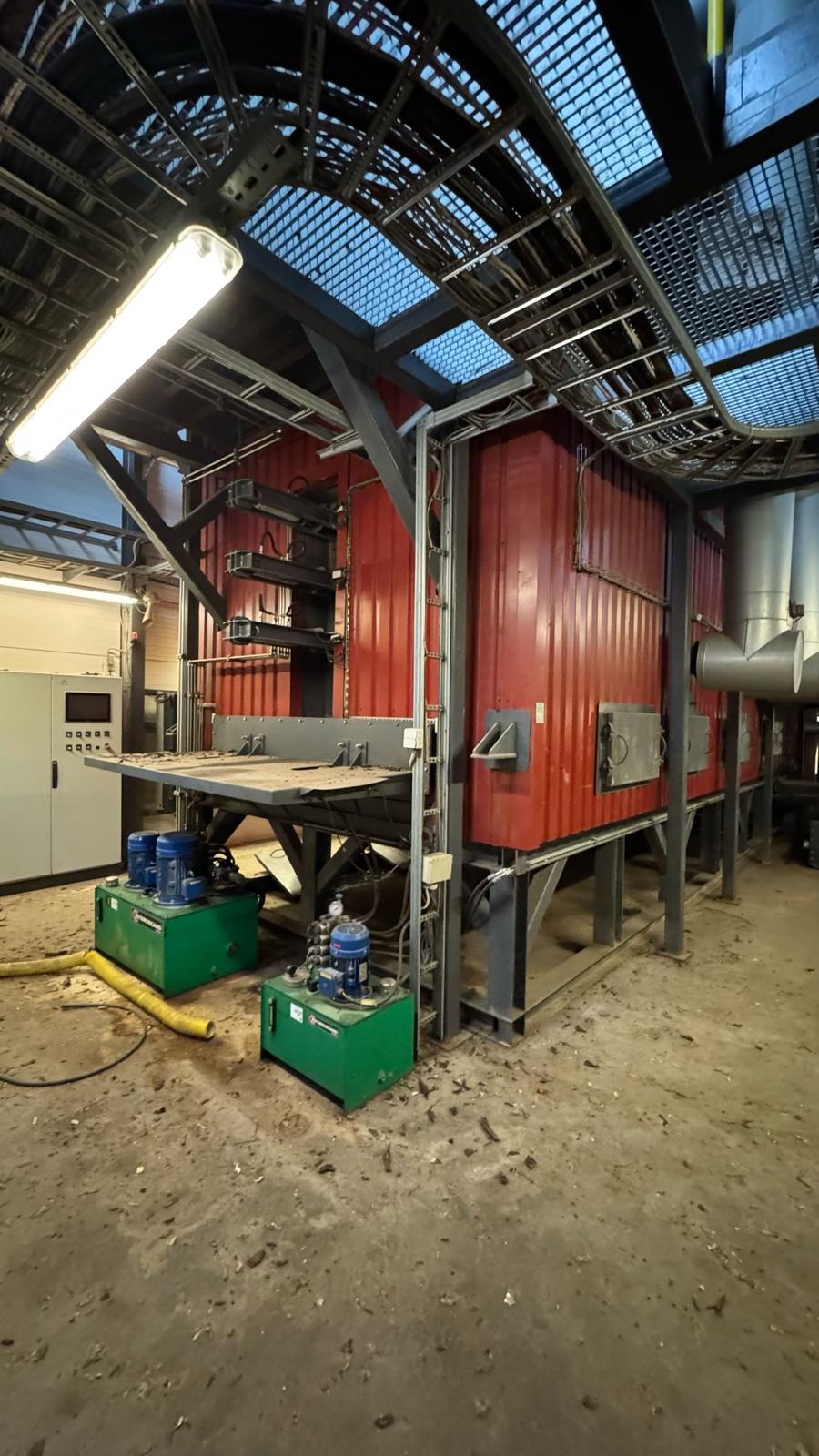

• Biomass combustion system

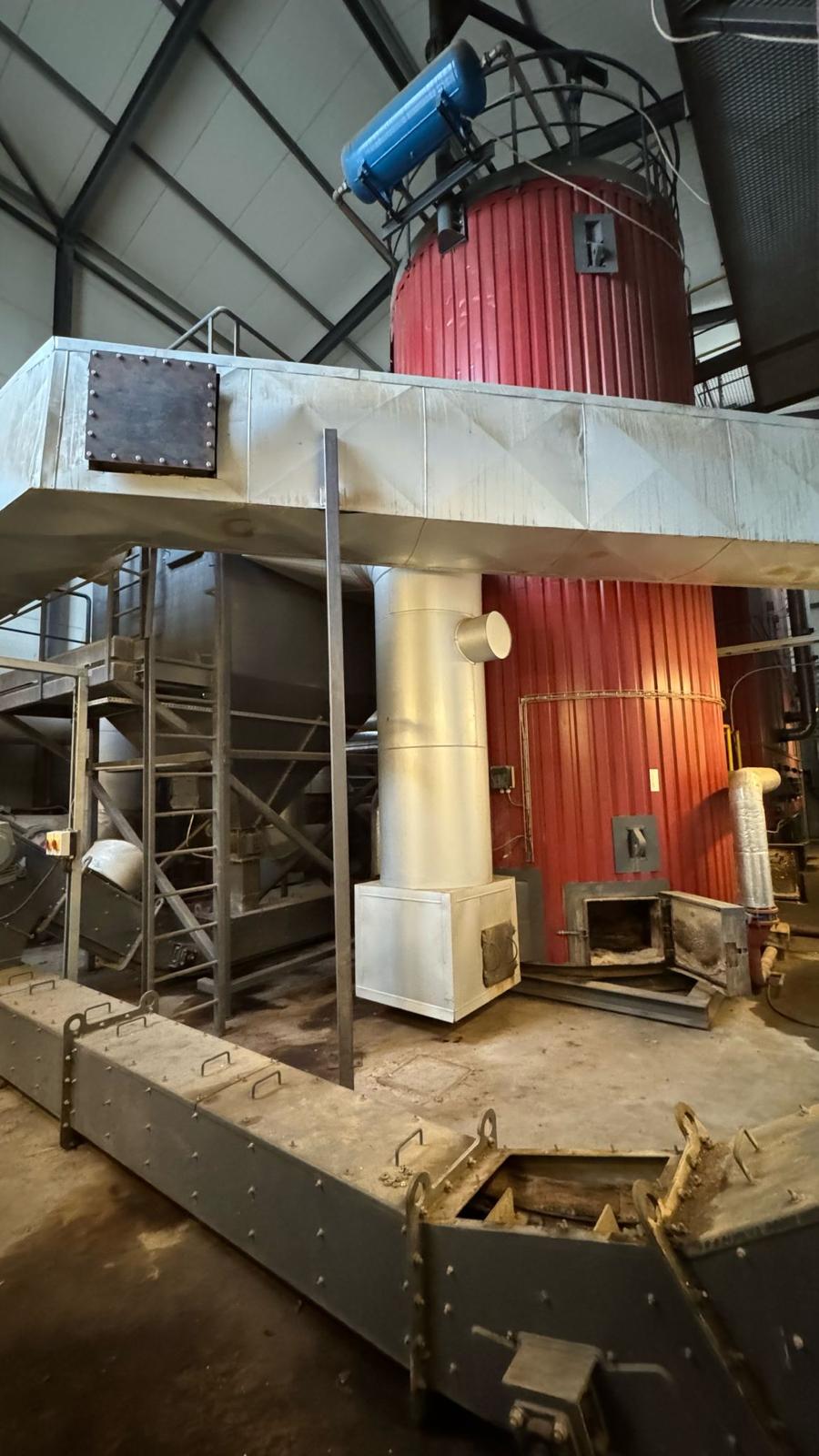

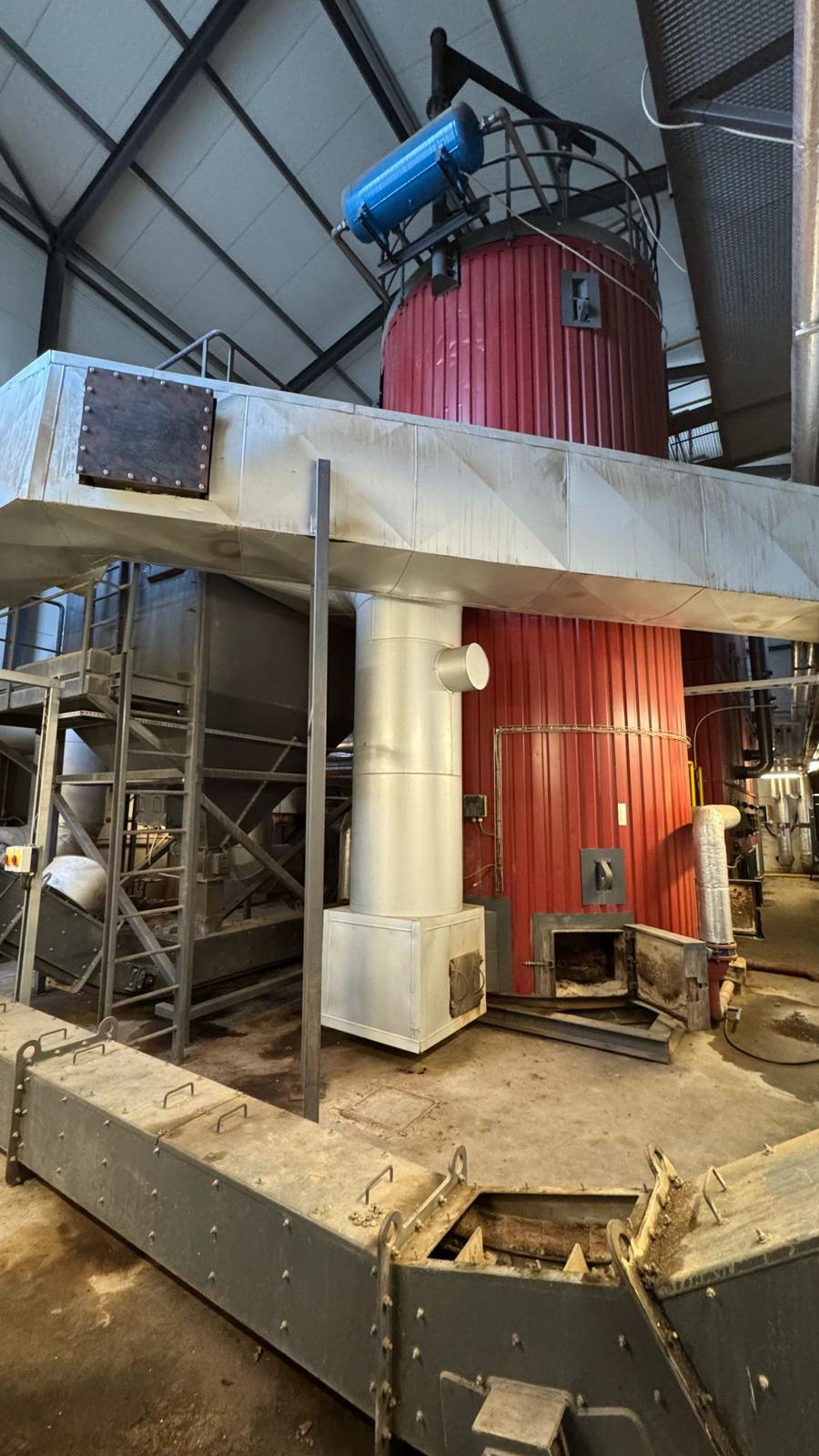

• Hot water boiler
• Ash removal system
• Flue gases primary cleaning system

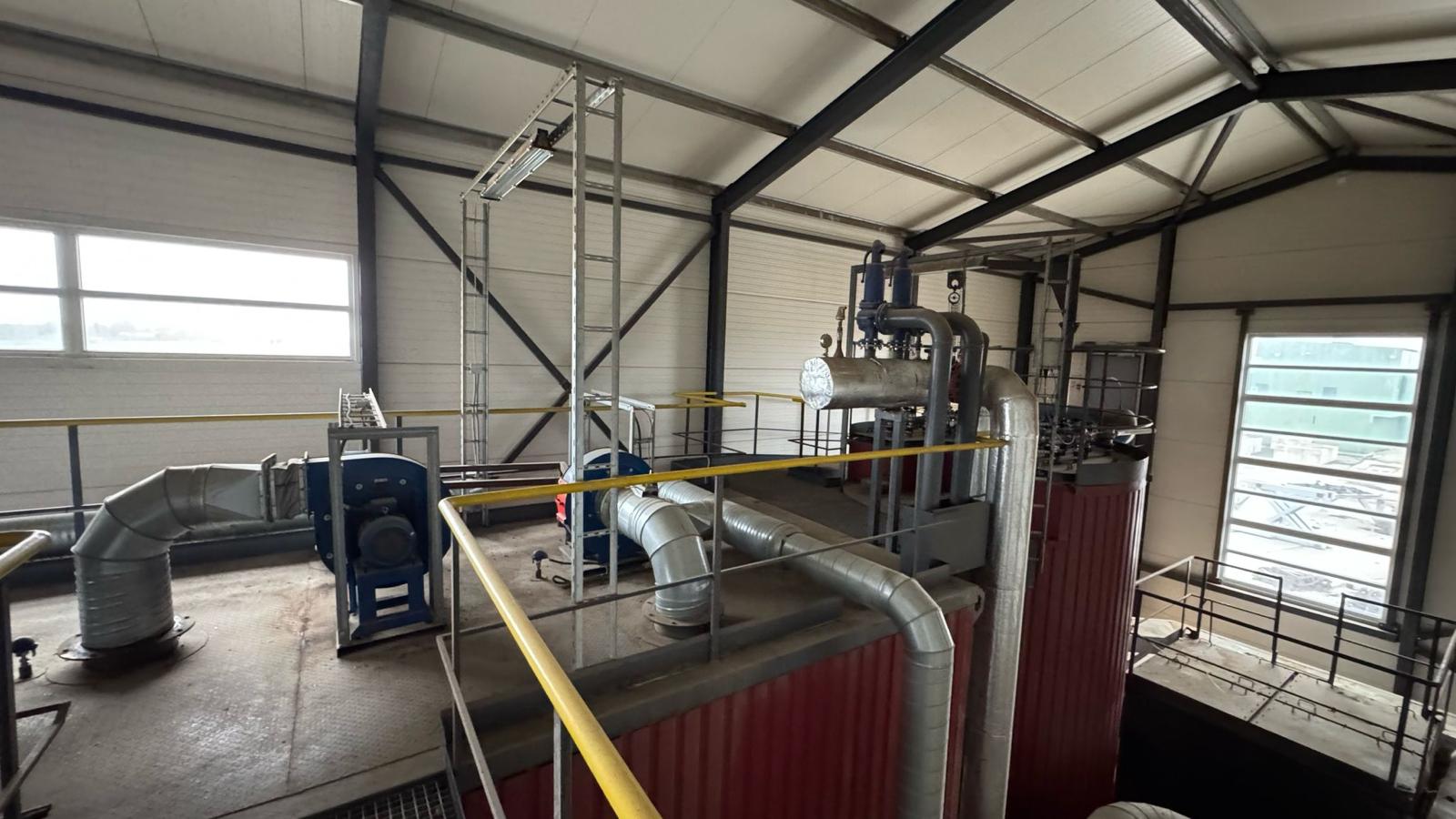

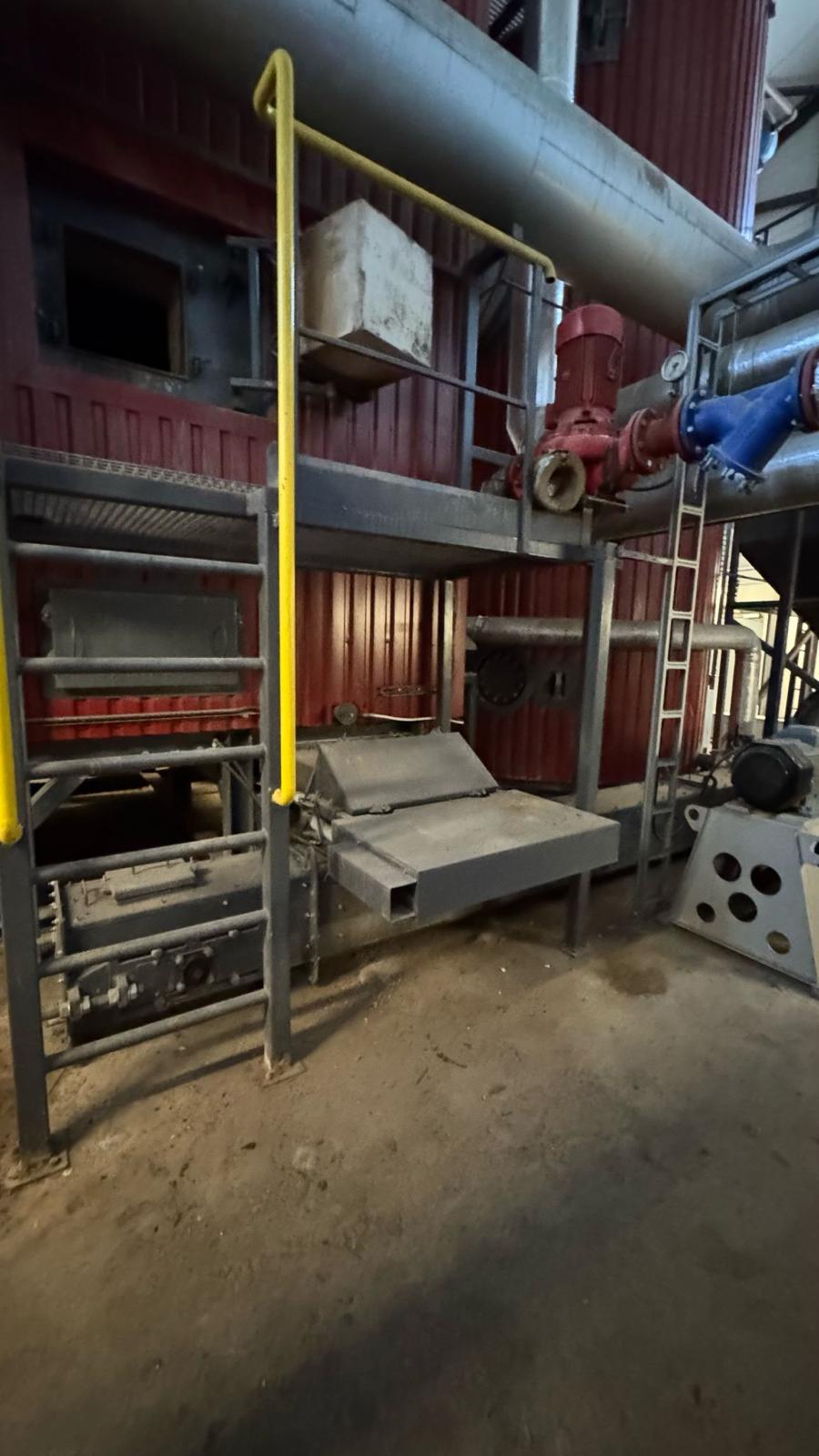

• Stairs and service platforms

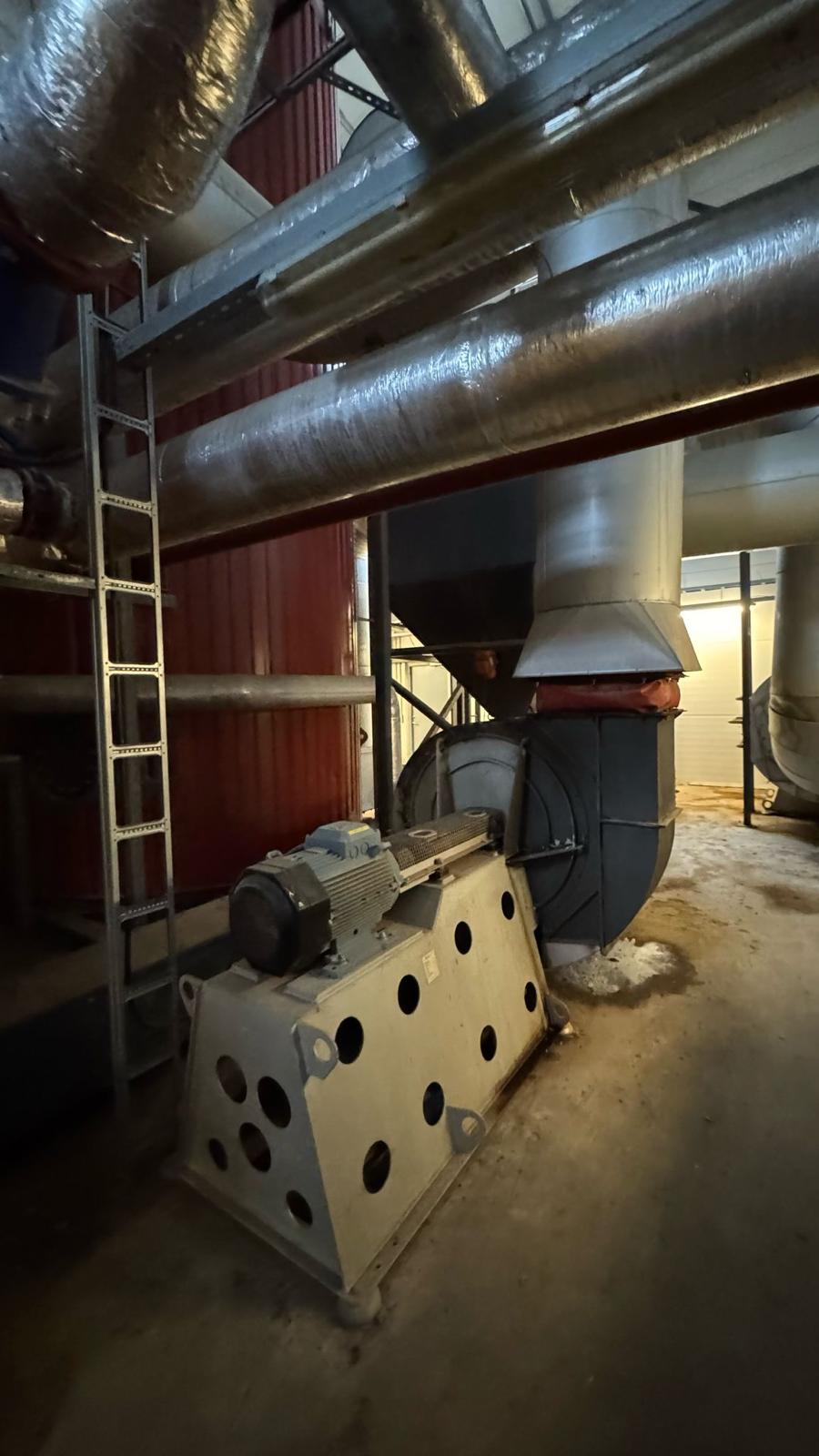

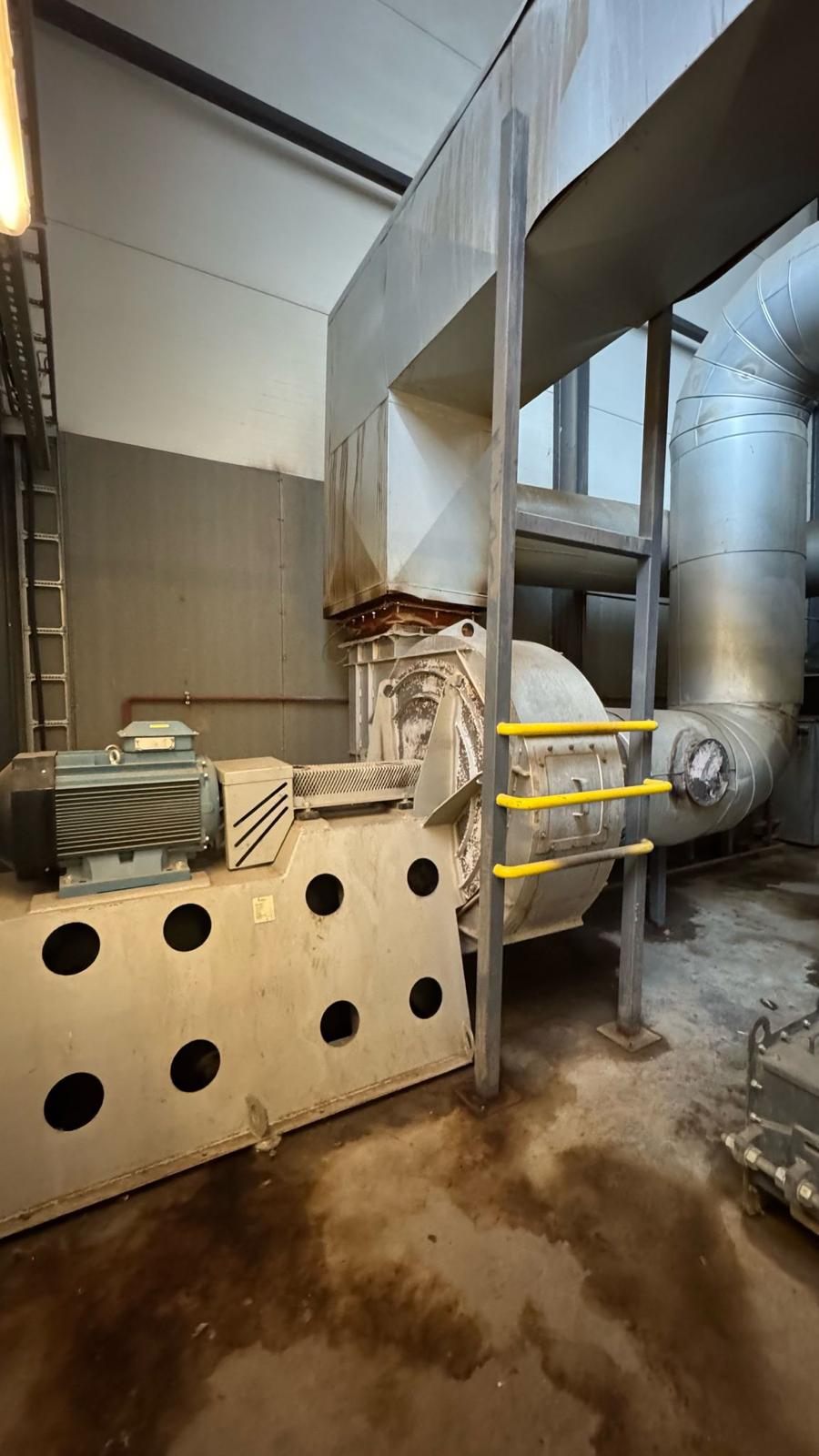

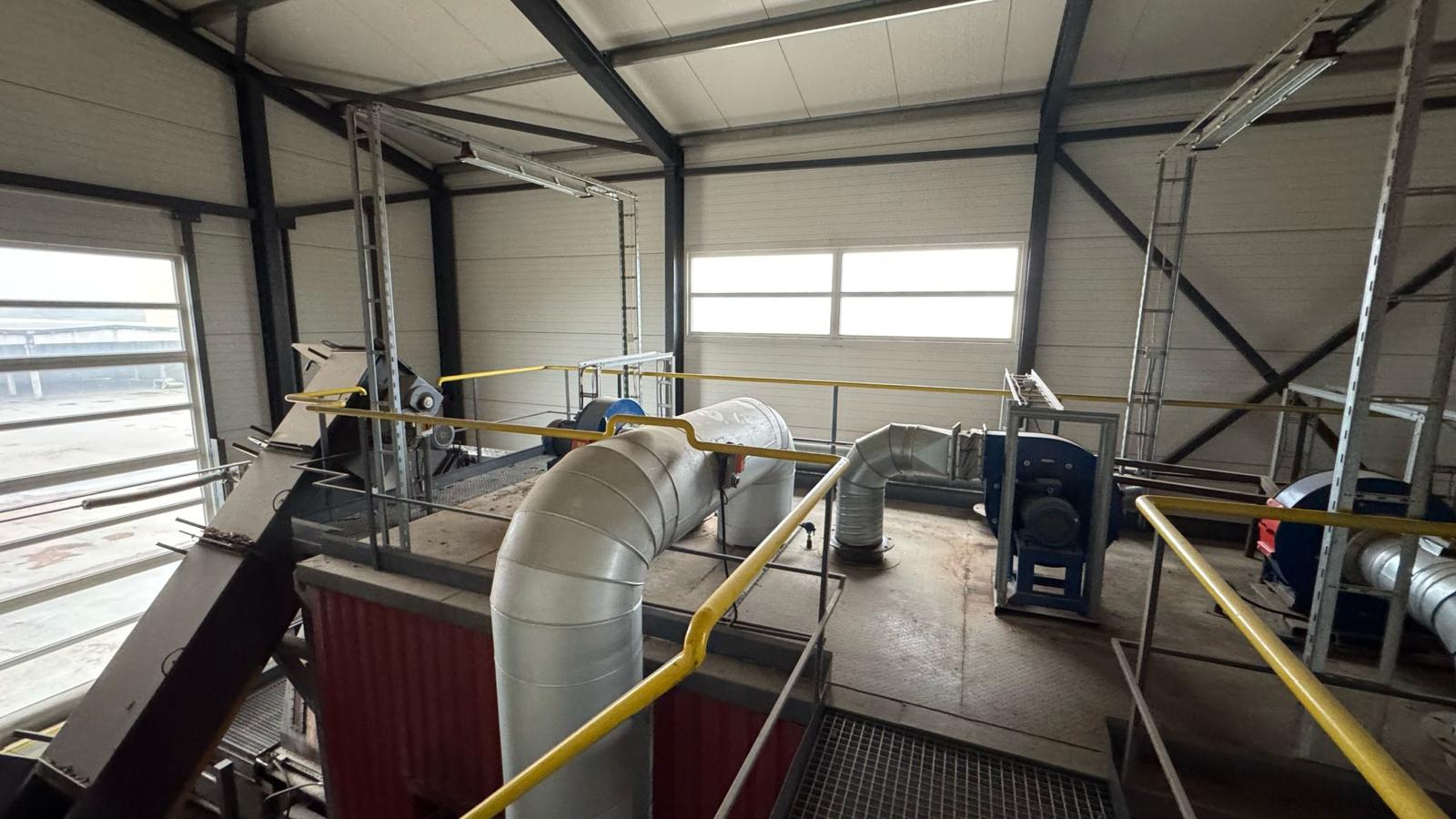

• Draft fan

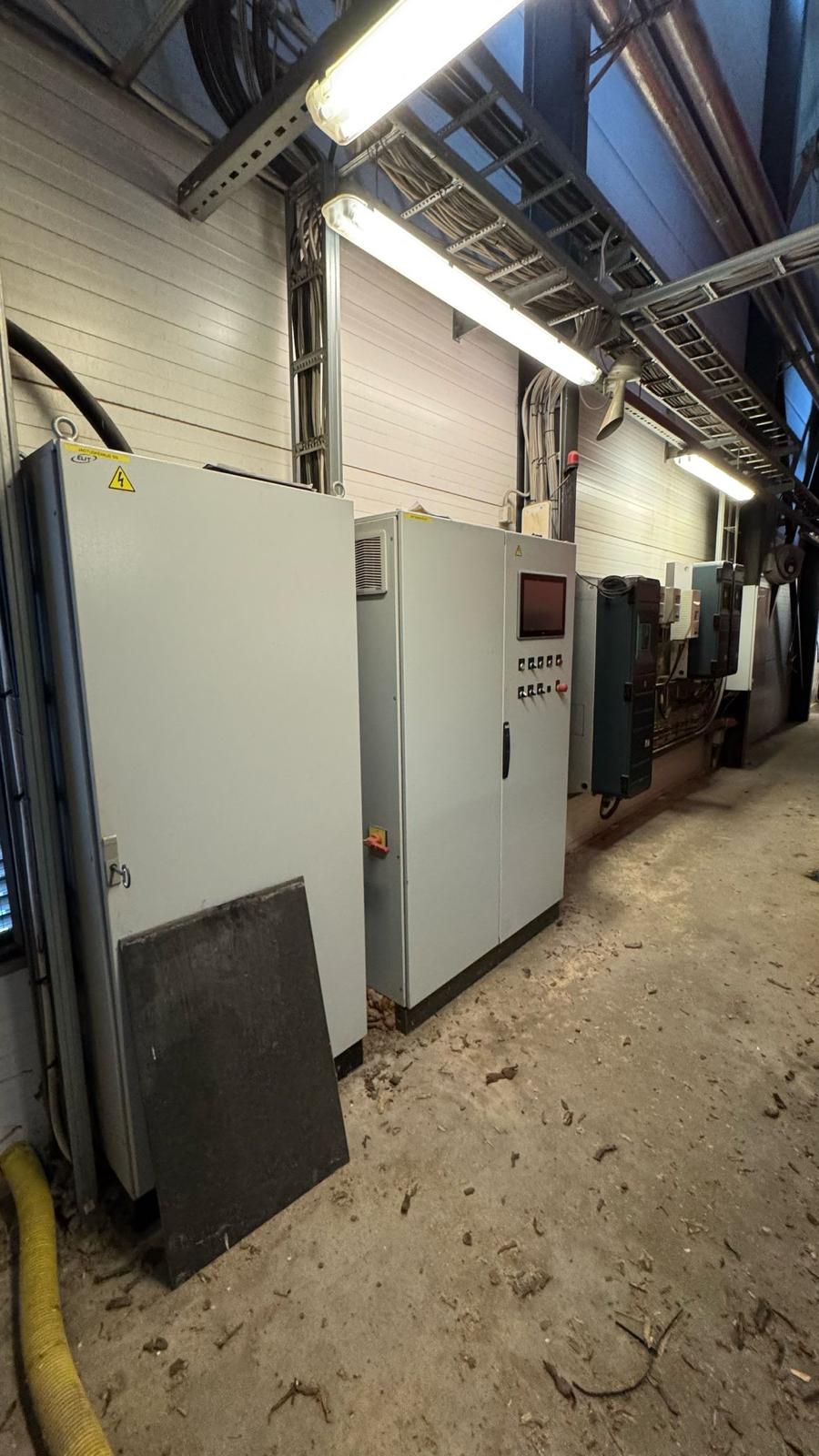

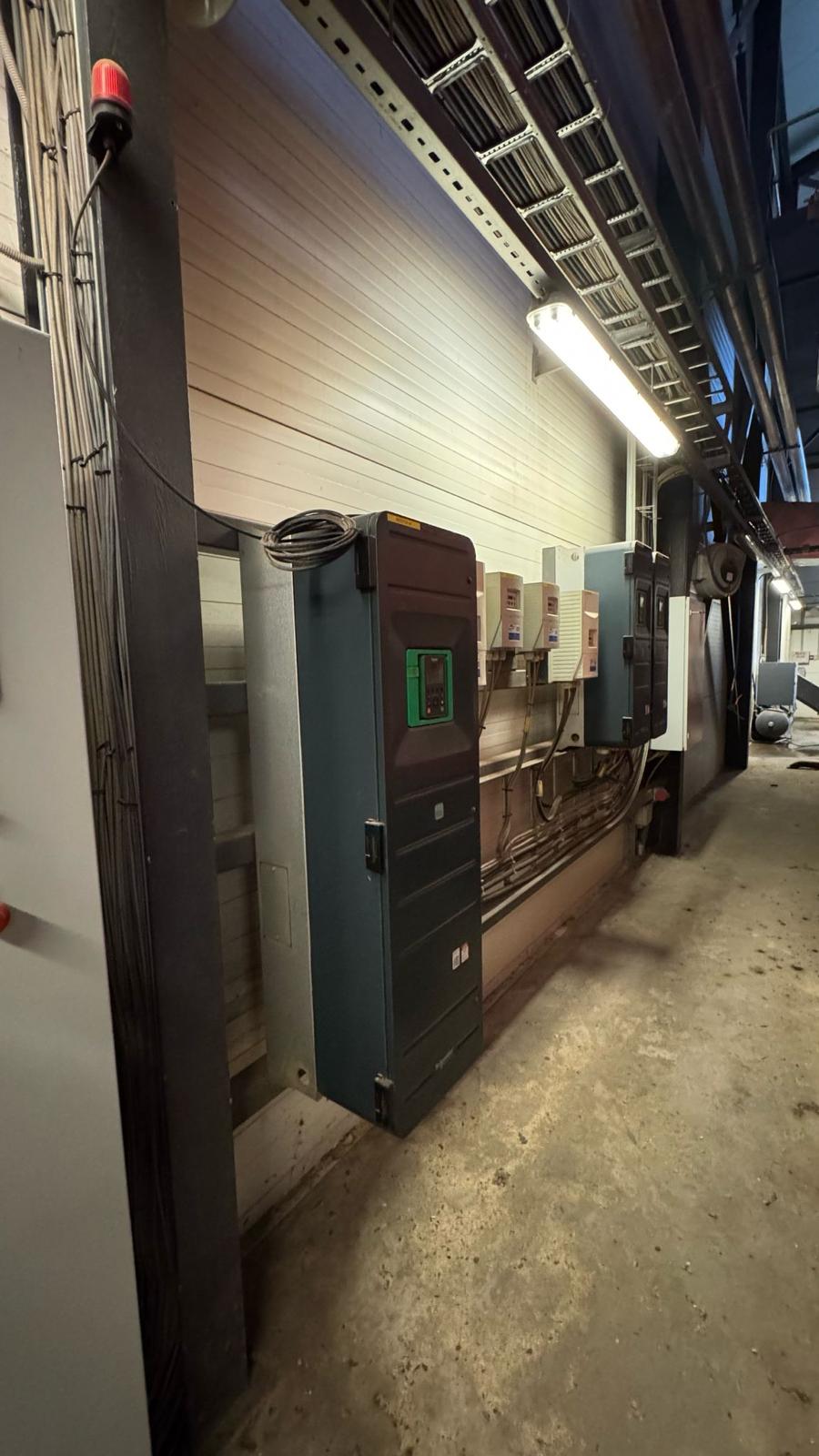

• Automatic control system

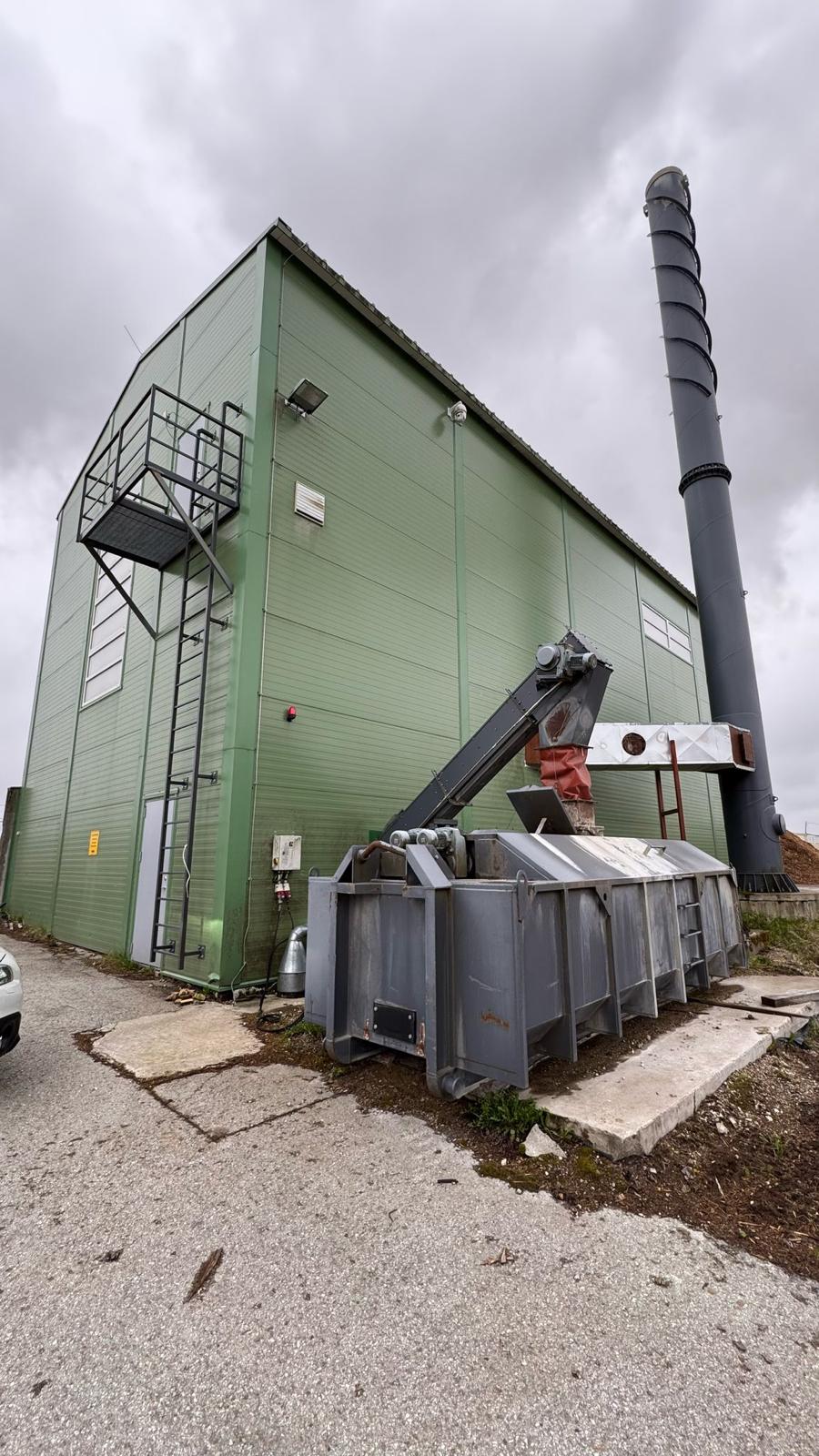

• Chimney

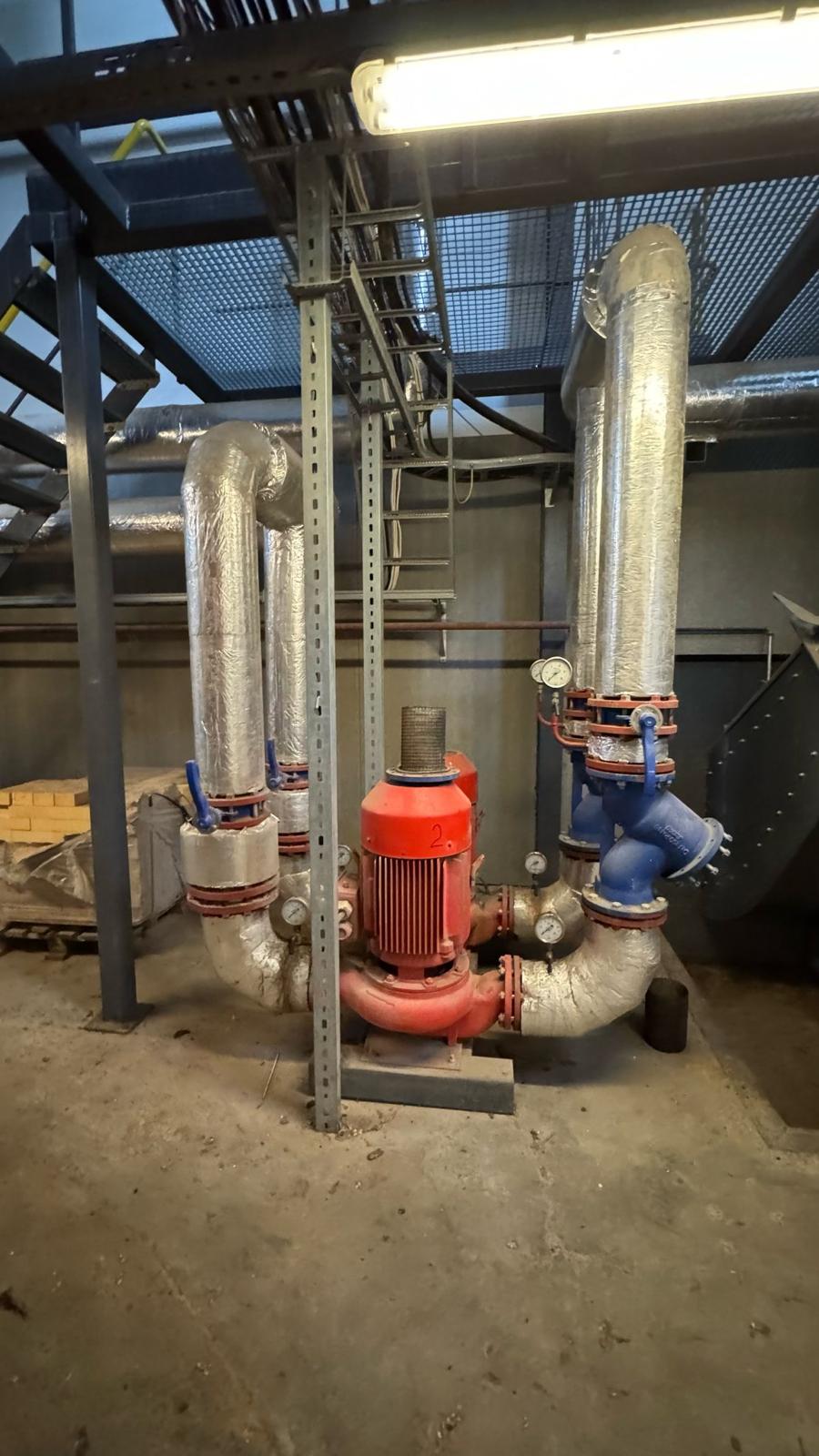

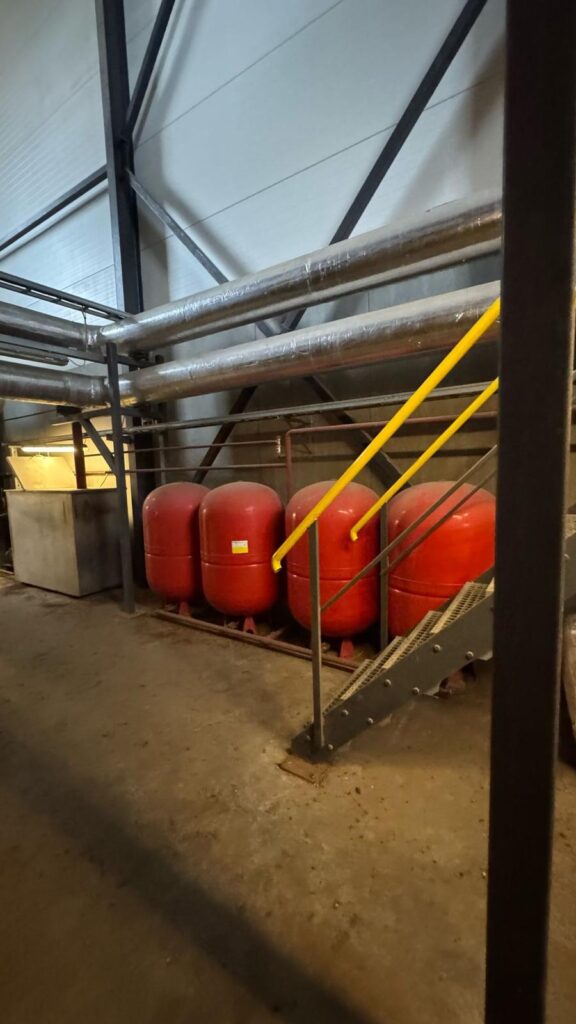

• Circulation system and water treatment

Main parameters and guarantee value are calculated according to fuel
parameters:

• Moisture 60-65 %
• Ash till 8 %
• Calorific value 7990 kJ/kg and 1907 kcal/kg

Main parameters of the furnace 6000 K:

• Maximal designed thermal output – 6.5 M
• Maximum continuous rate – 6 MW
• Furnace regulation range 20% – 100%
• Volume of furnace- 31.6 m3
• Volume of combustion chamber – 24m3
• Grates area 12 m2
• Grates designed thermal load – 500 Kw/m2
• Combustion chamber designed thermal load – 250 Kw/m3
• Maximum temperature in the combustion chamber – 900°C

The following kinds of biomass are accepted for combustion in the furnace:
– wood chips – 100%
– forest wood residues- 100%
– saw dust – 100% (G15)
– chunk peat – 100%
– bark – 100%
